Manual

BIN DIAMETER : Length
19’ : 12’ - 0’’
21’ : 13’ – 0’’
24’ : 14’ – 6”
27’ : 16’ – 0”
30’ : 17’ – 6”
33’ : 19’ – 0”
36’ : 20’ – 6”
42’ : 23’ - 6”
48’ : 26’ – 6”

This system has been extensively field tested and has proven its reliability and performance in various farm duty applications. It has been designed to meet the specific needs of farmers, providing a hassle-free and effective grain bin unloading solution. With the grain bin power sweep unload system, you can expect to find everything you are looking for in a grain bin unloading system.

It offers convenience, efficiency, and durability, ensuring that your grain unloading process is smooth and easy. Whether you have a small or large operation, this system can handle the task with ease, saving you time and effort..

Furthermore, the field testing and proven performance of this system provide you with the assurance that it can handle the demands of your farm duty applications. It has been meticulously designed and engineered to withstand the rigors of the farm environment, ensuring its longevity and reliability.

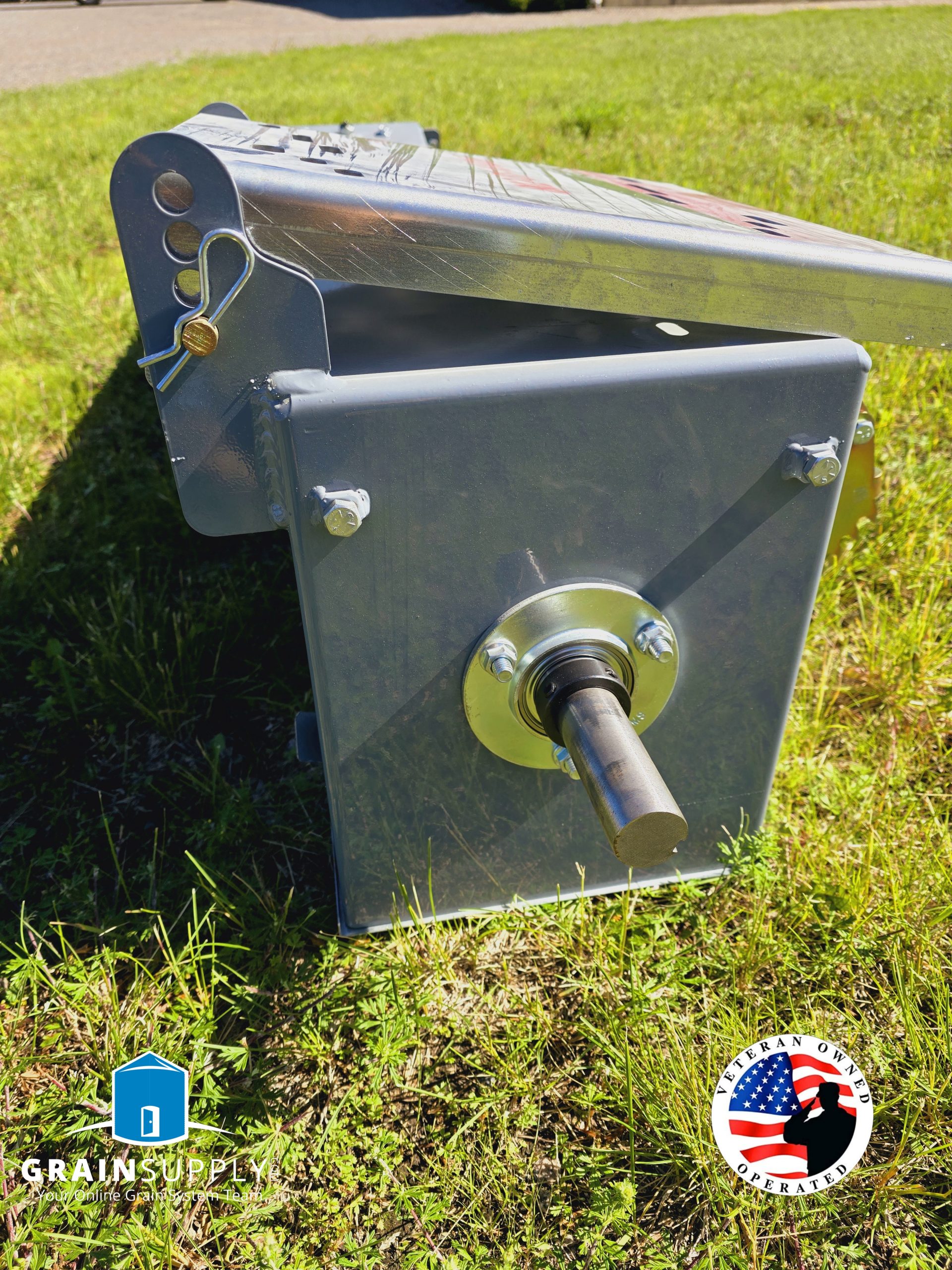

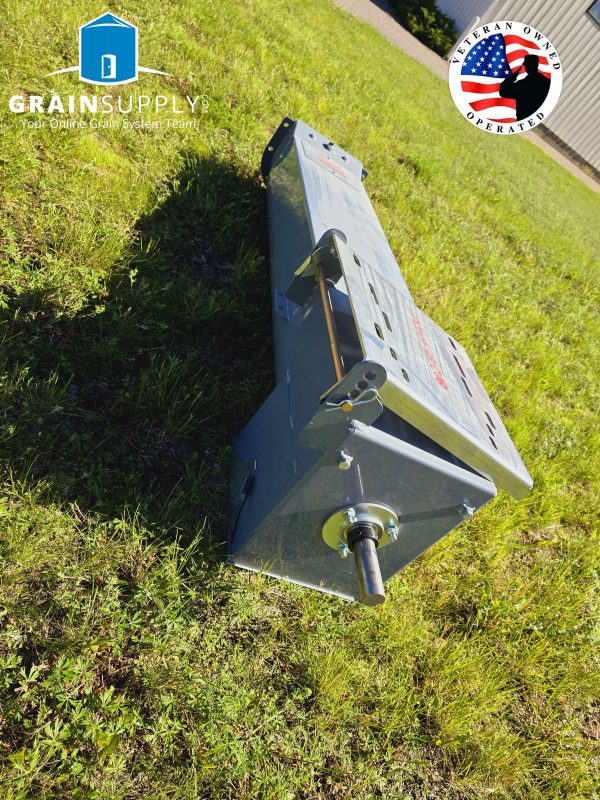

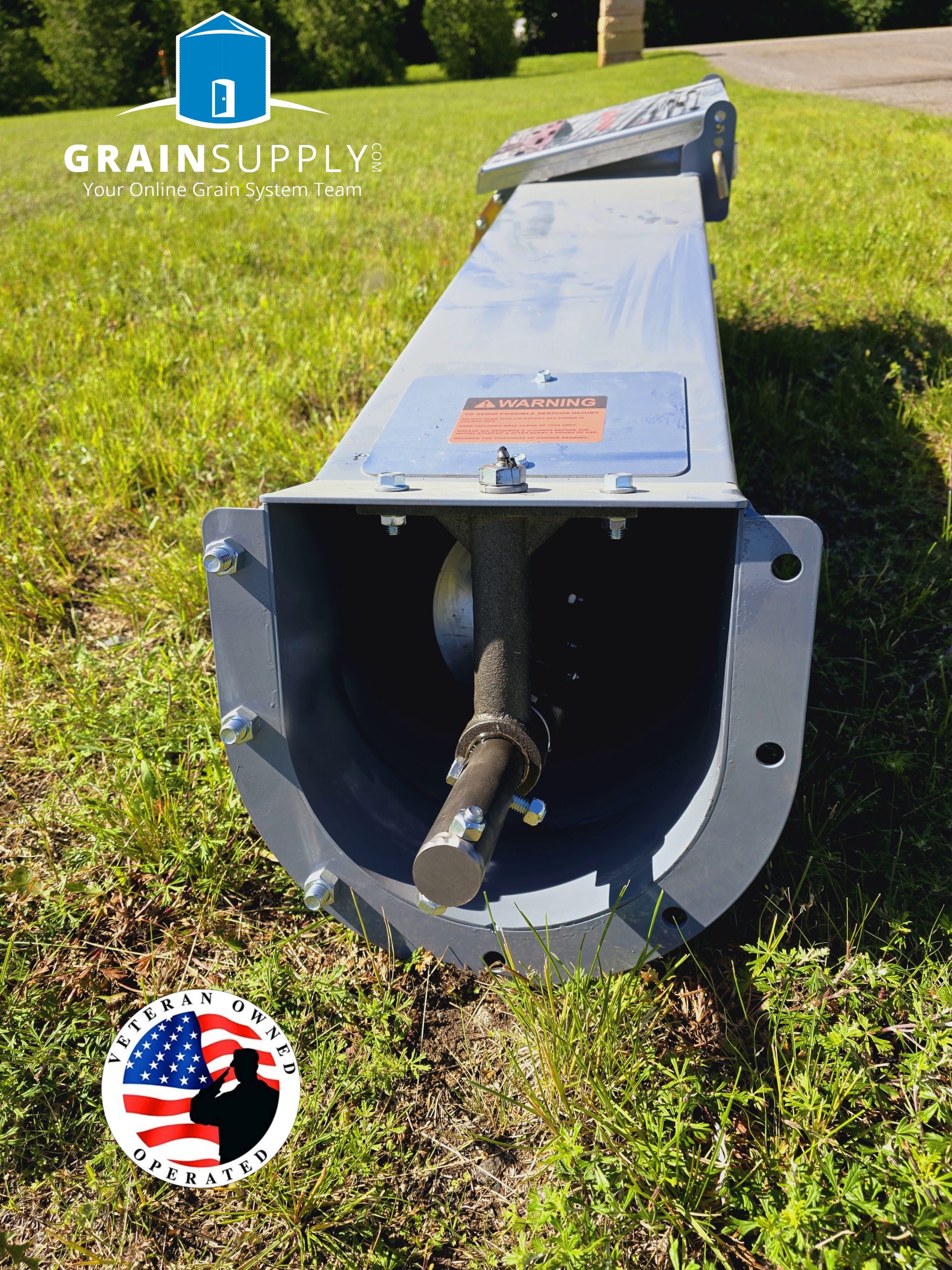

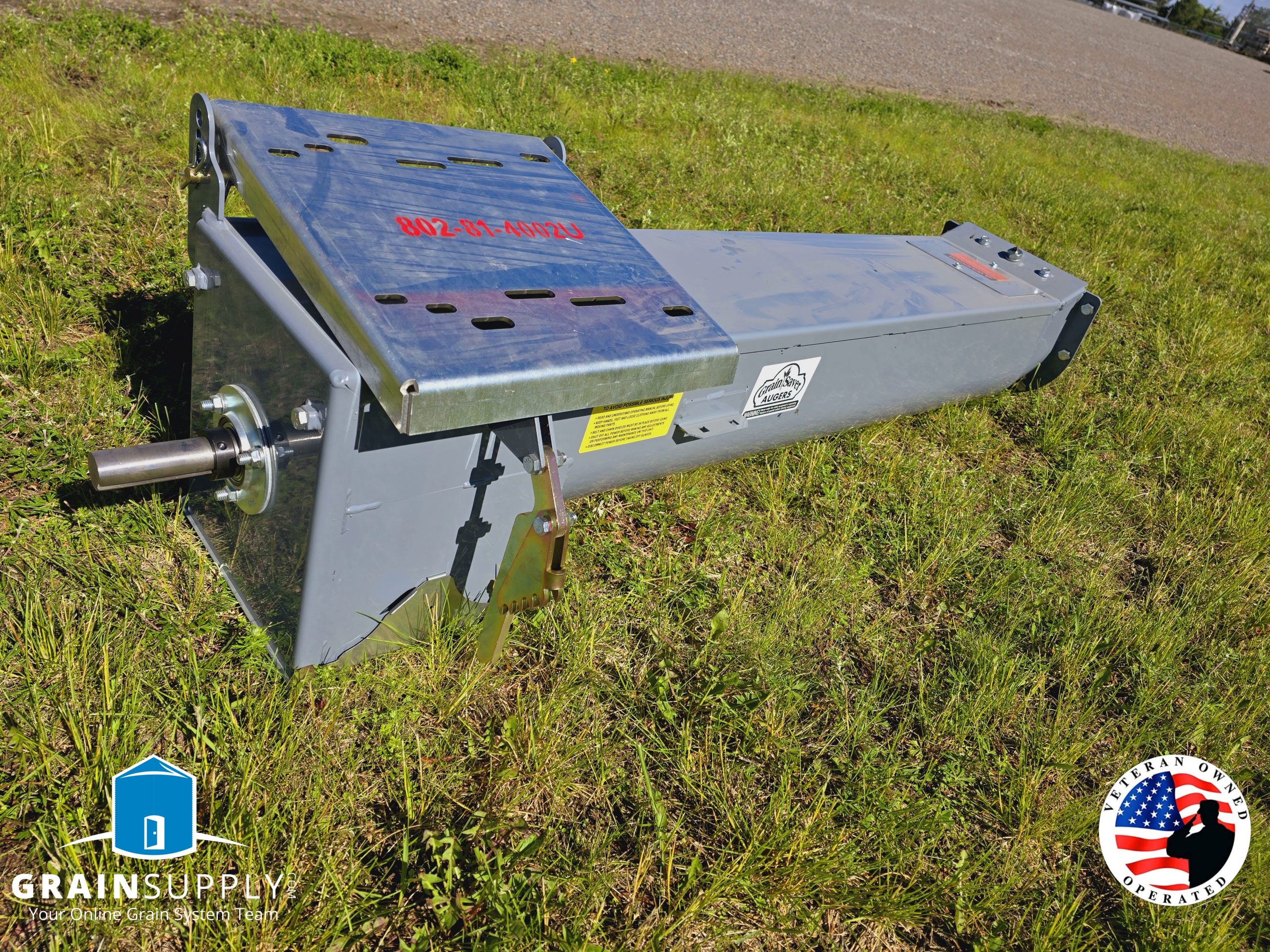

POWERHEAD DRIVES

Power head drives are built around an all-welded, one-piece steel housing. A hanger bearing supports the open end. Motor plates can be easily interchanged between powerheads by simply lifting it off. Height adjustments are made with a multi-position over-centric lever, and four hole hinge height positions. Inclined powerheads are complete with a service cover for maintenance of the U-joint. To keep rodents out, all powerheads ship with a snap-on “rodent cover”.

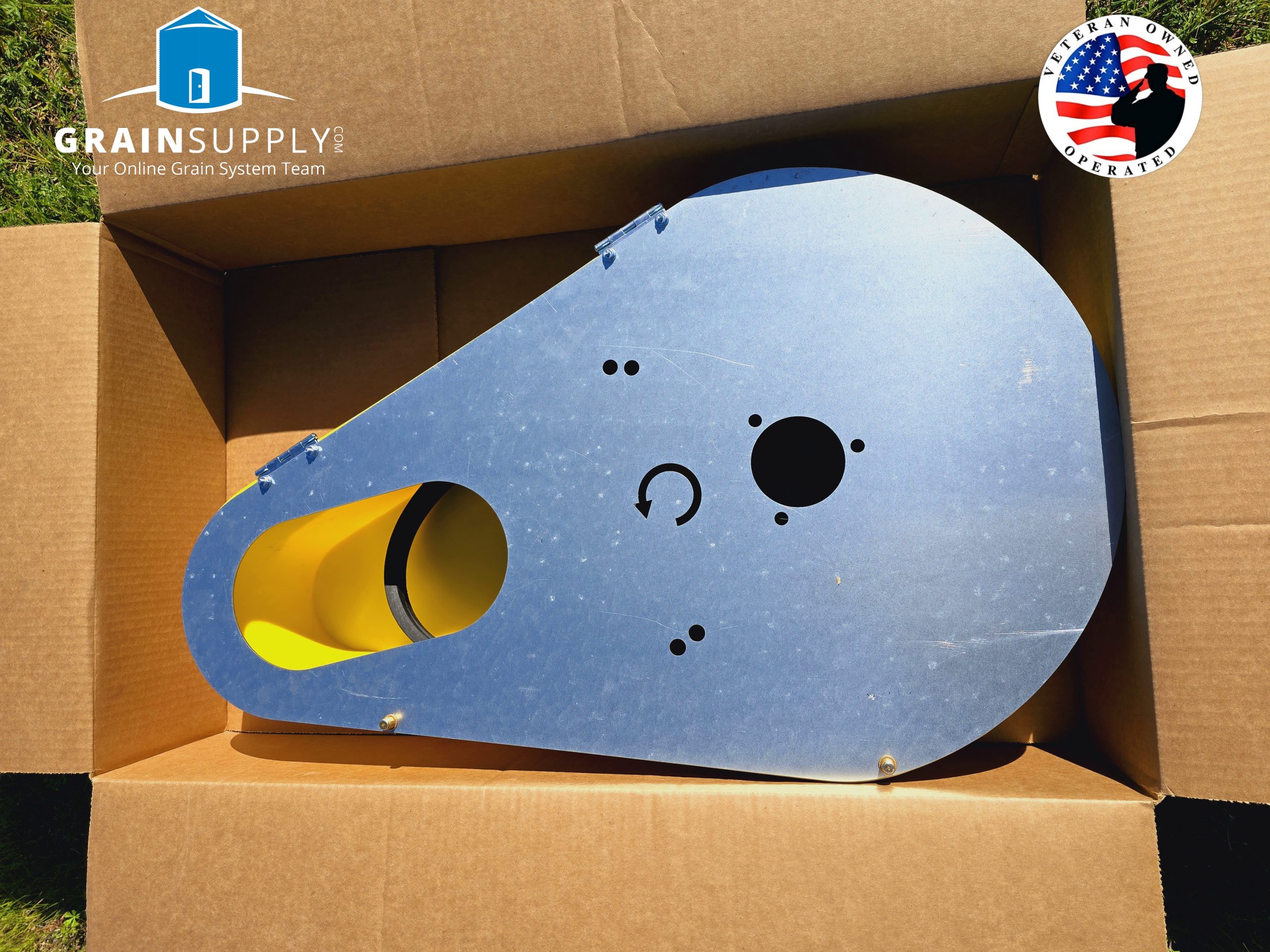

The Innovative, heavy duty motor mount design is the easy off style and has the over center belt tensioner as standard. The drive belt(s), mounting hardware, belt guard and back plate are all included. Cover IS included; Motors and motor sheaves are NOT included. Belts supplied are for the most common motor applications and may not fit all styles of motors.

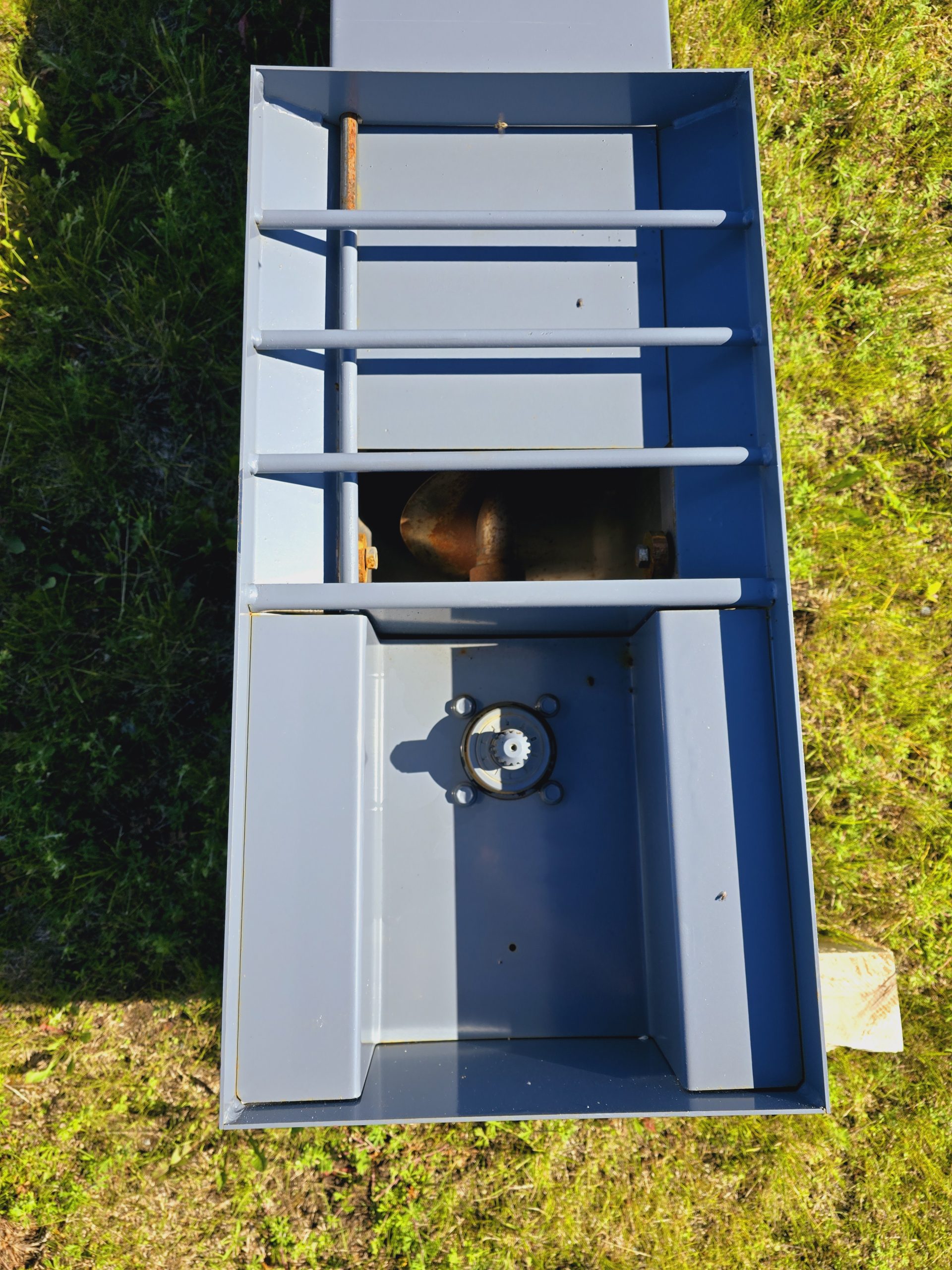

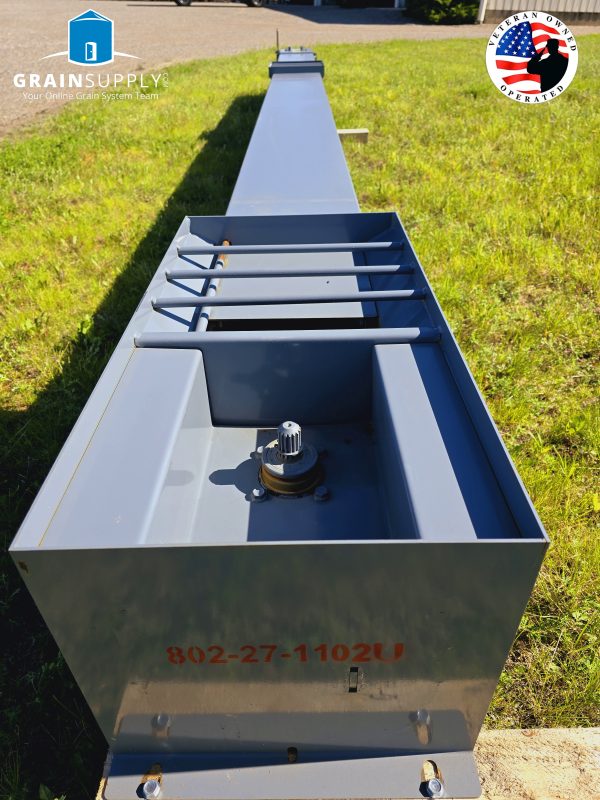

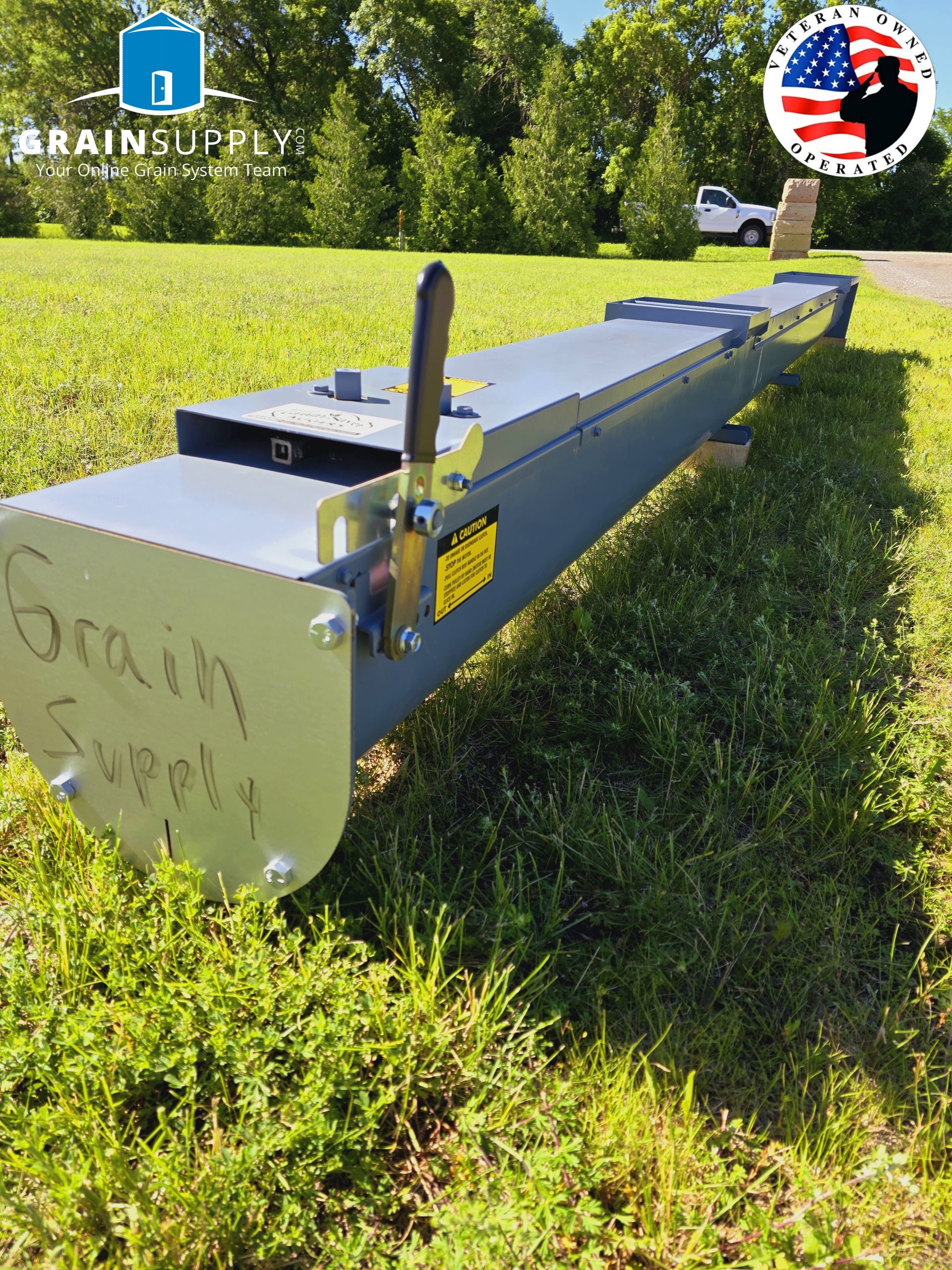

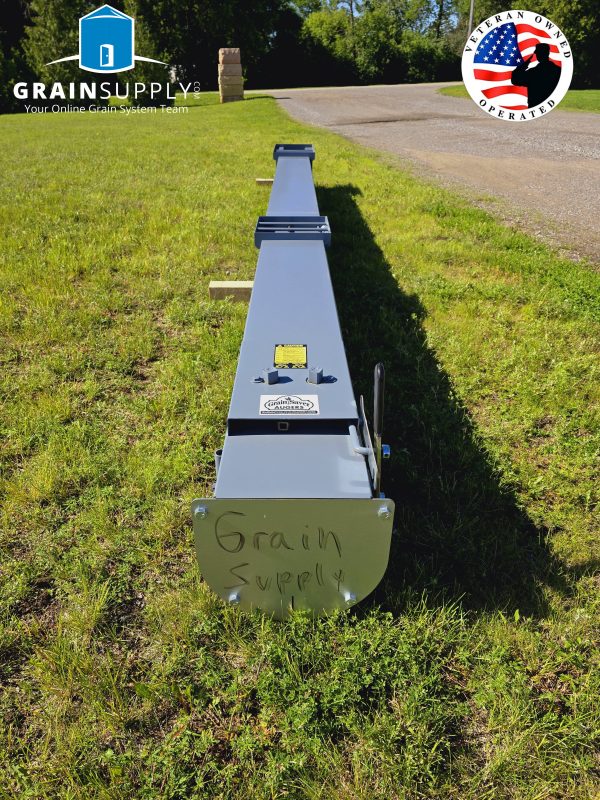

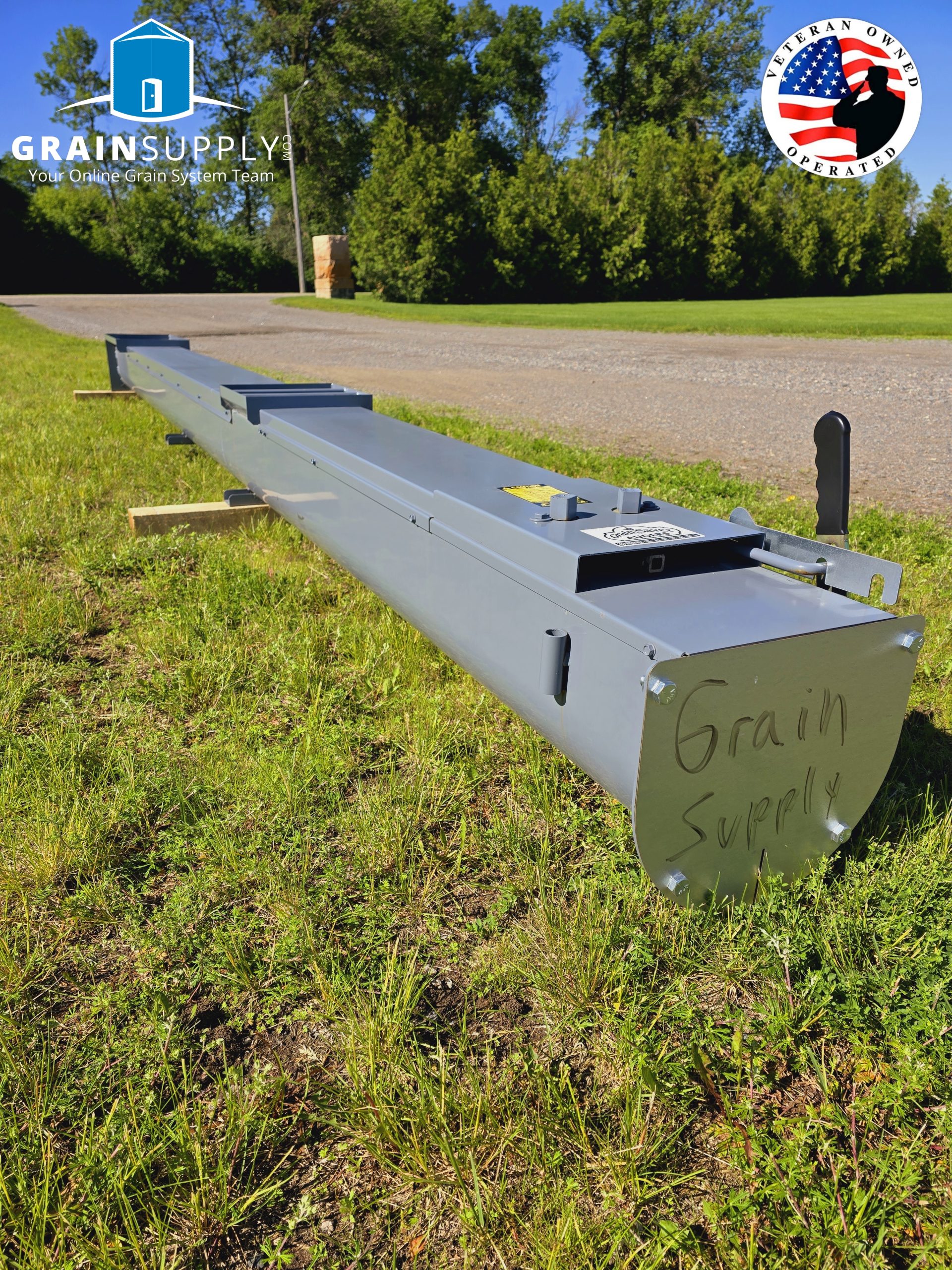

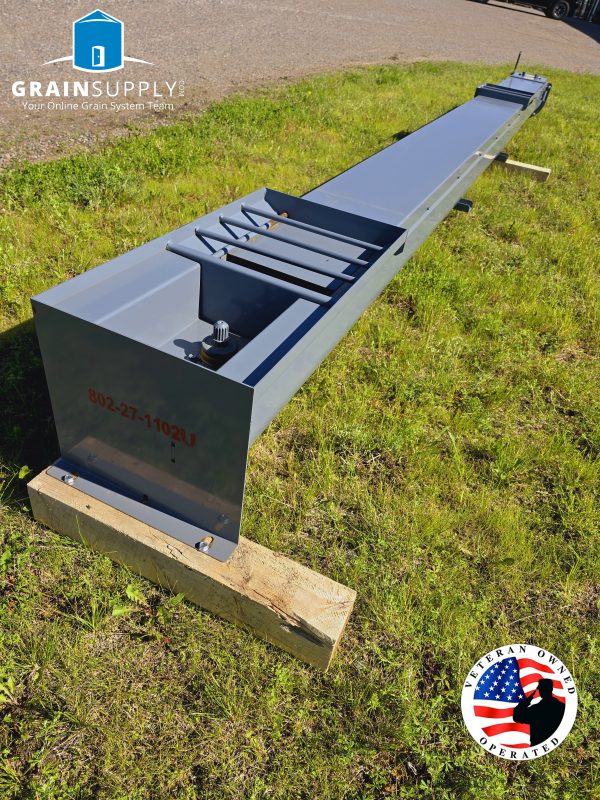

UNLOAD TUBES

Unload tubes are located under your bin floor and feature a fully assembled/welded construction. The fully welded assembly results in an easy-to-install, long life product.
• Sumps are built entirely out of 12 Ga. steel.
• Pull rods are protected inside a schedule 40
sleeve.
• Floor brackets occur every 6-10’ for a solid installation.
• Available for bin sizes 18’-48’. Tube diameters include 8” and 10”.
• Custom tubes are available in any length, up to 12”
in diameter. Sump spacing and count can also be
customized.
